4-Pin Momentary Switch with Breaker for Power Tongue Jack

4-Pin Momentary Switch with Breaker for Power Tongue Jack

This power jack switch comes with built-in jumper bars for polarity reversing. Simply connect power, ground and two DC motor leads.

• RV Jack Switch, DPDT (Double Pole Double Throw) with Momentary On-Off, Reversing Switch with Jumper Bars - 4 Pin
• Cut-Out Size: 1.47" x 0.83" (37.4 x 21 mm) - 20 Amps 12V DC

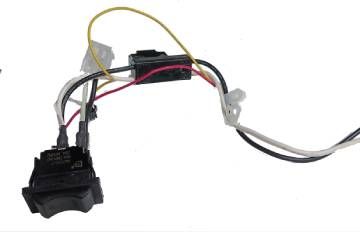

• Includes: 12V DC Motor Control Switch and Wire Set
• This power jack switch comes with built-in jumper bars for polarity reversing
• Simply connect power, ground and two DC motor leads and the switch will reverse the motor direction
• Replacement for most RV / trailer power tongue stabilizer jacks, many fifth wheel jacks, travel trailers, and some power awning switches
