Hydraulic Hose

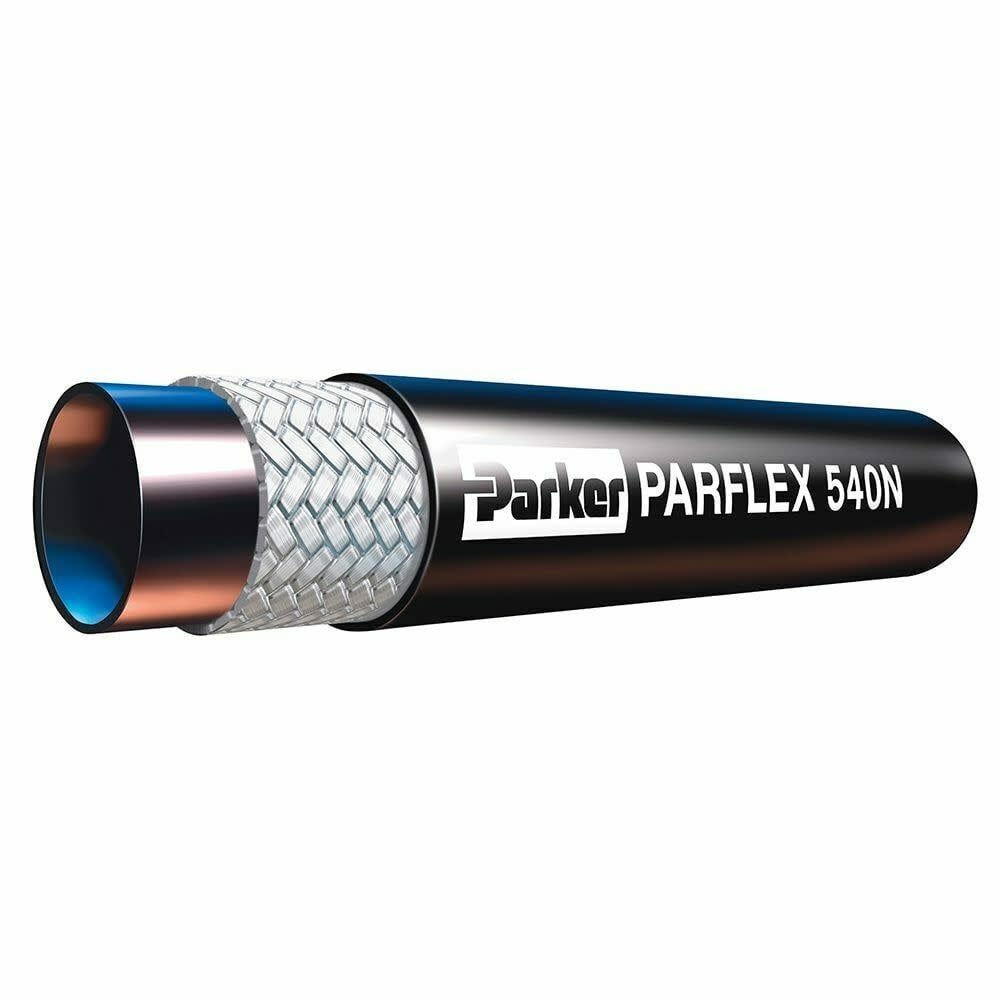

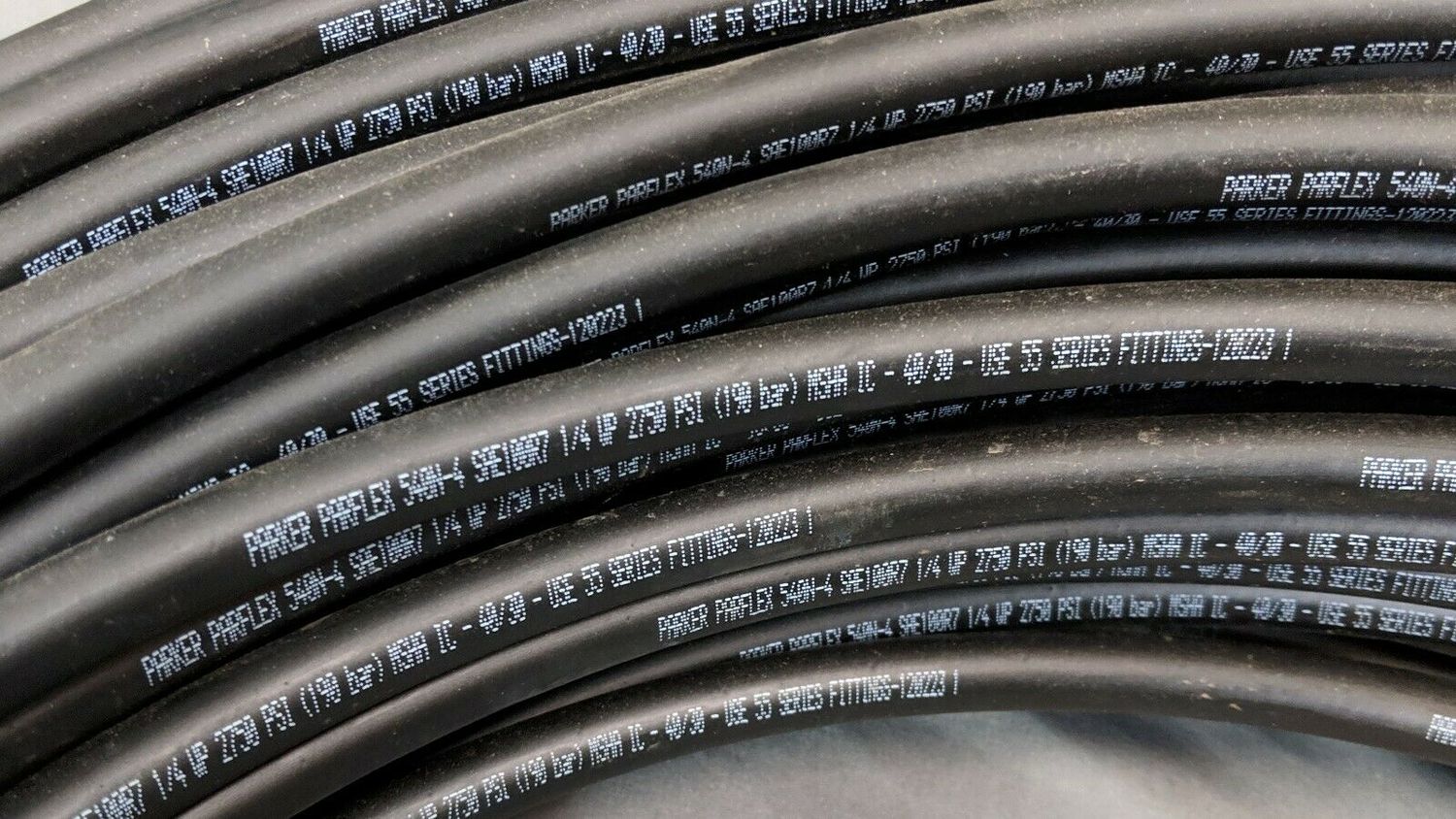

Parflex 540N-4 1/4" General Hydraulic Hose
*Sold by the foot*

Because this is cut to order, we cannot accept returns. Please confirm this item will work for your intended purpose before purchase.

The Parflex 540N Hose is a medium pressure hydraulic hose that offers excellent chemical compatibility and a wide service temperature range of -40 to 212 degrees F (-40 - 100 degrees C). All constructed layers are bonded for optimum kink resistance and flexibility. Especially suitable for cold temperature applications.

Features and Benefits:

• Nominal ID: 1/4" or 6 mm
• Maximum OD: 1/2" or 13 mm
• Maximum Working Pressure: 2,750 PSI or 19.0 MPa
• Minimum Bend Radius: 1 1/2" or 38 mm
• Matte finish urethane cover for low coefficient of friction
• Twin or multi-line fiber reinforcement; polymeric inner tube
• Compatible with Parker's 56 series fittings

Applications:

• Fuel control valves
• Oil lighters
• Diesel generators
• Coal yard - dozers & loaders
• Pneumatic air hose
• Steam atomization on oil burners
