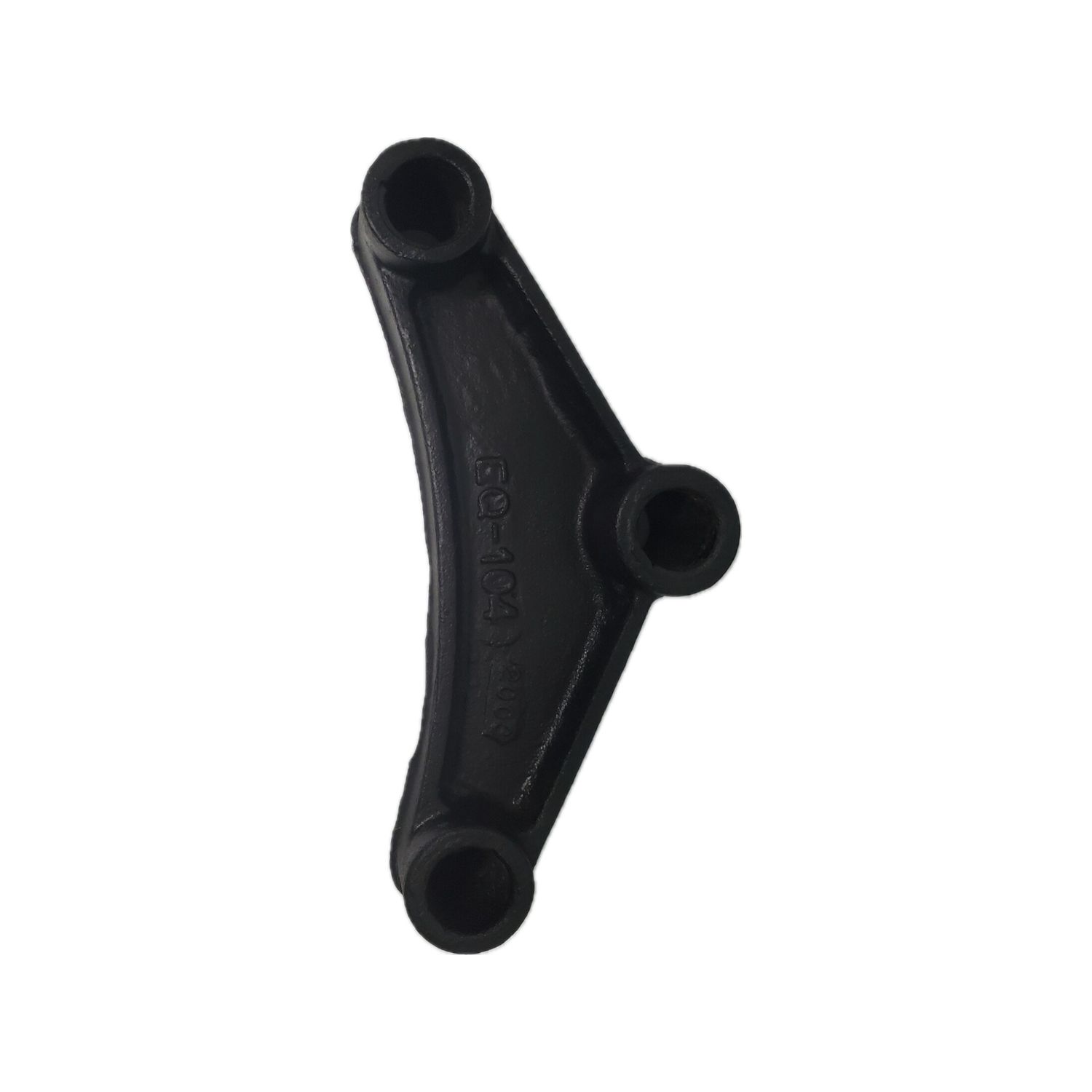

Curved Equalizer for Trailer Axles

This assembly is used in standard curved suspension kit configurations. Best suited for trailers with standard axle spacing.

The easiest way to determine the correct replacement parts for your trailer's suspension is by simply measuring its existing components.

Looking at your current equalizer, you will want to measure from the center of the front hole to the center of the rear hole. (A)

Then measure from the center of the top hole down to the center line between the two lower holes. (B)

The diameter of the holes. (C)

• A= 5-3/4"
• B=1-3/4"
• C=9/16"

Please note: The sleeves (bushings) for C and D are not included.
