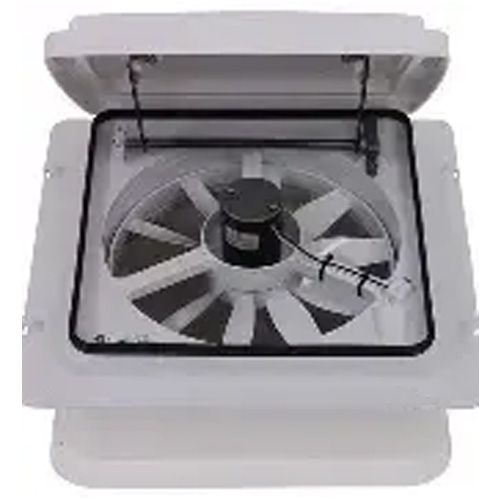

Maxxair Roof Vent - 12v Fan - Manual Lift - 4 Speed - White

Maxxair Roof Vent - 12v Fan - Manual Lift - 4 Speed - White

The built-in rain shield on this manual roof vent protects the interior of your RV or camper from rainwater. The 4-speed fan provides efficient airflow inside your RV. Ceiling fan mode circulates air when vent is closed.

• Built-in rain shield keeps rainwater out while vent runs.
• 4-speed, 12V fan moves up to 900 CFM to clear heat and odors fast.
• Ceiling-fan mode keeps air moving without opening the vent.
• Rubber weather seal and UV-resistant flange help prevent water intrusion.
• Dual-arm dome opens smoothly and stays steady in wind.
• Installs in 14'x14" roof cutouts, 5" tall closed, 9-5/16" open.

• Fits: roofs 1-1/8" to 6-1/2" thick
• Opening size: 14" wide x 14" long

• Overall dimensions: 22-1/2" long x 16-1/2" wide x 5" tall
• Mounting flange dimensions: 16-1/2" long x 16-1/2" wide
• Garnish dimensions: 16-3/8" long x 16-3/8" wide
• Vent extends above roof: When closed: 5" / When open: 9-5/16"

• Overall fan diameter: 12"
• Fan capacity: 900 CFM
• Quantity of fan blades: 10
• Power draw: 5 amps

• Vent assembly: 2-Year limited
• Dome: Limited lifetime
• Condition: New, factory surplus

Note:

• Important notice: Not for use above tubs, showers, or range cooking surfaces.
