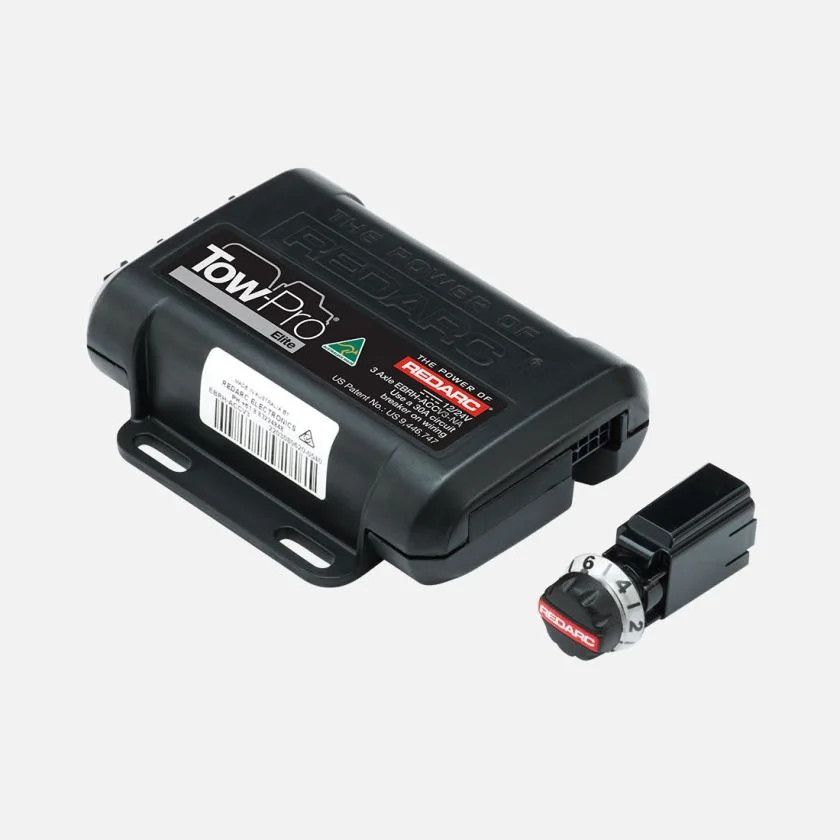

Tow-Pro Elite Electric Brake Controller w/2 modes ACCV3-NA

Two-Pro Elite Electric Trailer Brake Controller EBRH-ACCV3-NA

Power of Redarc

The REDARC Two-Pro Elite is the only brake controller on the market with 2 braking modes at the turn of a dial and comes with a free universal pig-tail wiring harness and unioversal switch insert panel.

ALL-WEATHER, ALL-TERRAIN PERFORMANCE

Manual Off-road Mode- Provides user-controlled braking, allowing you to independently manage the trailer’s speed separate from your vehicle. Perfect for more challenging conditions such as steep descents, deep snow, mud, and sand.

Everyday Mode- Using proportional braking, the trailer adjusts its braking force in sync with the vehicle’s brakes, ensuring a smooth and controlled experience. Perfect for day-to-day towing.

You can choose what braking type best suits the road conditions, vehicle type or driver preference, and the Tow-Pro Elite is suitable for 12 and 24-volt systems.

ADVANCED BRAKE CONTROLLER TECHNOLOGY

This model features a three-axis accelerometer which can measure acceleration in any direction. The main unit can be mounted in any orientation, out of sight and still sense the brake level accurately.

The SEMA Global Media Award winning Tow-Pro Elite also comes with self-levelling technology, so it can sense the rate of deceleration and features active calibration, which constantly monitors the vehicles direction of travel, with or without a trailer attached.

The REDARC Tow-Pro Elite control knob is designed with low profile and shock-absorbing elastomers ensuring it can be installed in crash impact zones, and all Tow-Pro Elite purchases come with a free universal pig-tail wiring harness included as standard.

SIMPLIFY SETUP

With simple, one time calibration as soon as you start driving - with or without a trailer connected - the Tow-Pro is always ready for any family getaway or last minute trip. Tow the RV, trailer or boat without needing to worry about setup every time. Combine our Tow-Pro range with our wiring harnesses and switch inserts for the ultimate electric brake controller setup or get everything you need for your Tow-Pro installation with our brake controller kits. We also have a handy guide to help you find the right Tow-Pro wiring harness for your vehicle.

Features:

• Two braking modes - proportional and user-controlled
• Main-unit mounter under dash
• No more knee-knocking
• Plug and play installation
• Designed for 12 and 24 volt vehicles
• Up to three trailer axles

Specifications:

• Nominal input system voltage 12V 24V
• Operating voltage 9-32V
• Nominal brake input Off-OV
• Signal voltage On-12V On-24V
• Brake coil voltage 12V
• Maximum trailer brakes 3
• Nominal current draw 18A
• Maximum rated current 25A 30A
• Standby current <5mA
• Operating temperature -4* - 140*F (-20* - 60*C)
• Weight 7 oz (200g)
• Warranty Two years

Included:

• Two-Pro Elite Electric Trailer Brake Controller
• Bonus - Universal switch insert and wiring harness

Condition:

• New, in box
