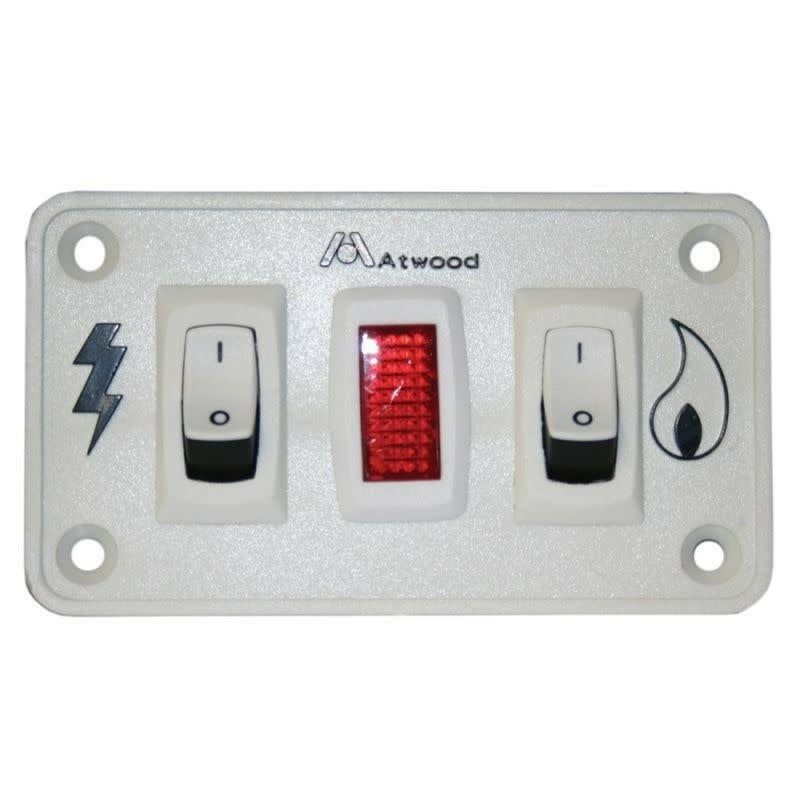

Atwood / Dometic Dual Water Heater Switch - White

Dual Panel Power Switch for a Dometic Atwood LP Gas/Electric combination water heater. Is mounted with four screws and operates on 12VDC. Eliminates the need for 120V remote switch. Electric element powered by 12V relay. Can be wired to low voltage monitor panel switches.

• 3 7/8" W x 2 3/16" H
• Screw holes are roughly 3 1/4" x 1 1/2"
• This switch works on the following models GCH6A-10, EGC6AA-10, EGC10A-4, EGCH10A-4E, WH-6GEA
  Can also be used for Suburban water heater models SWxDEL
